Key Features:

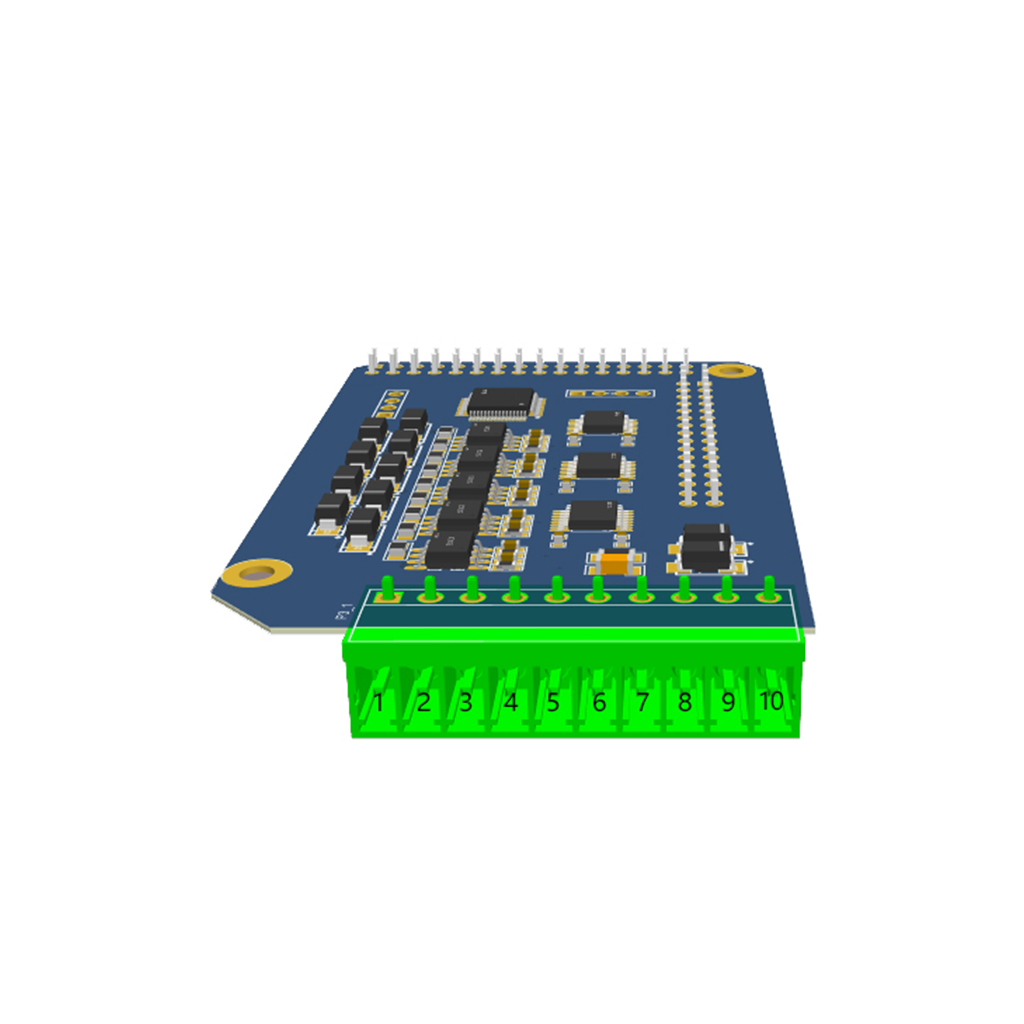

Dual-Function Design: Integrates 2 RS485 communication channels and 4 GPIO control channels
High-Speed RS485 Communication:
Supports baud rates up to 10Mbps
Communication distance up to 200 meters (at ≤115,200 bps)
Configurable data bits (5-8), stop bits (1-2), and parity settings
Flexible GPIO Control:
4 independent digital channels
Output voltage: High level 3.3V, Low level 0.7V
Input logic level: 3.0V-3.5V (Logic 1), 0V-1.0V (Logic 0)
Maximum output current: 5mA per channel
Industrial Protection:
RS485 channels feature 2KVrms isolation protection
Complies with IEC 61000-4-2/4/5 EMC Level 3 standards
BL118, BL310, BL335 X Series I/O Boards Selection
|
Model |
RS485 |
RS232 |
CAN |
GPIO |
PIN |
|
X1 |
4 |
x |
x |
x |
2x5PIN |
|
X2 |
x |
4 |
x |
x |
2x5PIN |
|
X3 |
2 |
2 |
x |
x |
2x5PIN |
|
X4 |
2 |
x |
2 |
x |
2x5PIN |
|
X5 |
x |
2 |
2 |
x |
2x5PIN |
|
X6 |
2 |
x |
x |
4 |
2x5PIN |
|
X7 |
x |
2 |
x |
4 |
2x5PIN |
|
X8 |
1 |
1 |
1 |
2 |
2x5PIN |
